Square handheld hanging scale with a green backlit LCD and a built-in buzzer — dual range up to 100 kg (5 g / 10 g division), eight weighing units, powered by 2 × AAA batteries.
The ESCL2603 is a heavy-duty handheld hanging scale for parcels, luggage, produce and workshop loads. Two ranges in one body: 0–10 kg at 5 g readability, then 10–100 kg at 10 g — with a green backlit LCD and a loud built-in buzzer that confirms each reading.
A rigid top handle carries the load; the stainless S-hook below hangs bags, fish, produce or parts. Four front-panel buttons: LIGHT (backlight), ON/OFF, MODE (unit) and TARE.
Dual accuracy ranges — 0–10 kg reads to 5 g, 10–100 kg reads to 10 g — so small parcels and heavy freight share one scale. A buzzer sounds as each reading settles.
ABS engineering-plastic body with metal hardware, 95 × 115 mm and 20 mm thick, 210 mm overall with hook. Runs on two AAA batteries.
| Model | ESCL2603 |
|---|---|
| Max capacity | 100 kg |
| Weighing range | 50 g – 100 kg |
| Division | 0–10 kg: 5 g · 10–100 kg: 10 g |
| Units | 8 — kg / lb / oz / tola / lb:oz / jin / Taiwan jin / Taiwan liang |
| Display | Green backlit LCD |
| Keys | LIGHT · ON/OFF · MODE · TARE |
| Audible | Built-in buzzer, loud alert tone |
| Body | ABS engineering plastic + metal hardware |

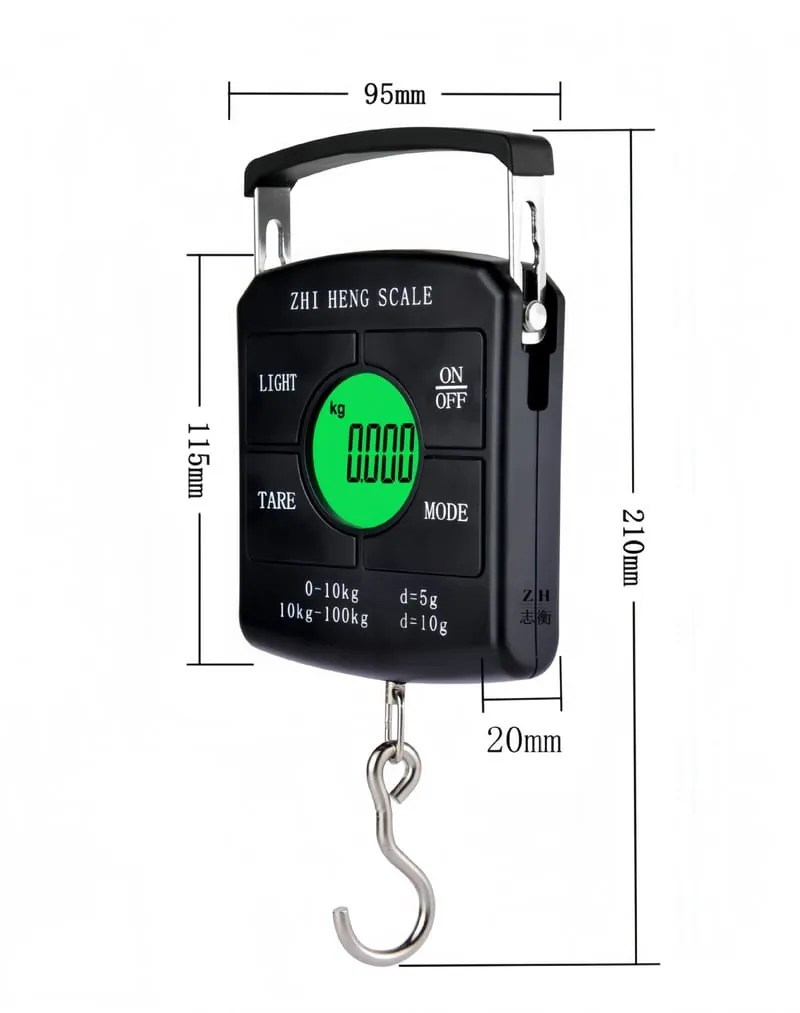

| Dimensions | 95 × 115 mm × 20 mm; 210 mm overall with hook |
| Power supply | 2 × AAA batteries |
| Packing | 100 pcs per carton, carton 65 × 48 × 45 cm |
| Typical use | Travel luggage, fishing, courier, market and factory weighing |
Specifications are typical values for the standard configuration. Custom materials, ranges and certifications are available on request — talk to an application engineer for a tailored datasheet.
