Cassette sprocket series from 7 to 13 speed — nickel-plated steel sprockets on a splined freehub body, with model-specific ratios from 11-25T road blocks up to 11-50T wide-range MTB blocks.
The CS Series covers cassette sprockets from 7 to 13 speed on one platform: nickel-plated steel sprockets on a standard splined freehub body, in model-specific ratios that run from tight 11-25T road blocks to wide-range 11-50T blocks for MTB and e-bike use.
Every model shares the same build principles: nickel-plated steel sprockets for corrosion resistance and long life, shift-gated tooth profiles for fast, quiet indexing, and a splined mount retained by a lockring (40 N·m torque).
Choose the speed count and ratio block that matches the drivetrain — 7S and 8S for entry and city bikes, 9S and 10S for road and trekking, and the 11S / 12S / 13S ranges for modern MTB and e-MTB groups, with model numbers CS732 through CS1350.

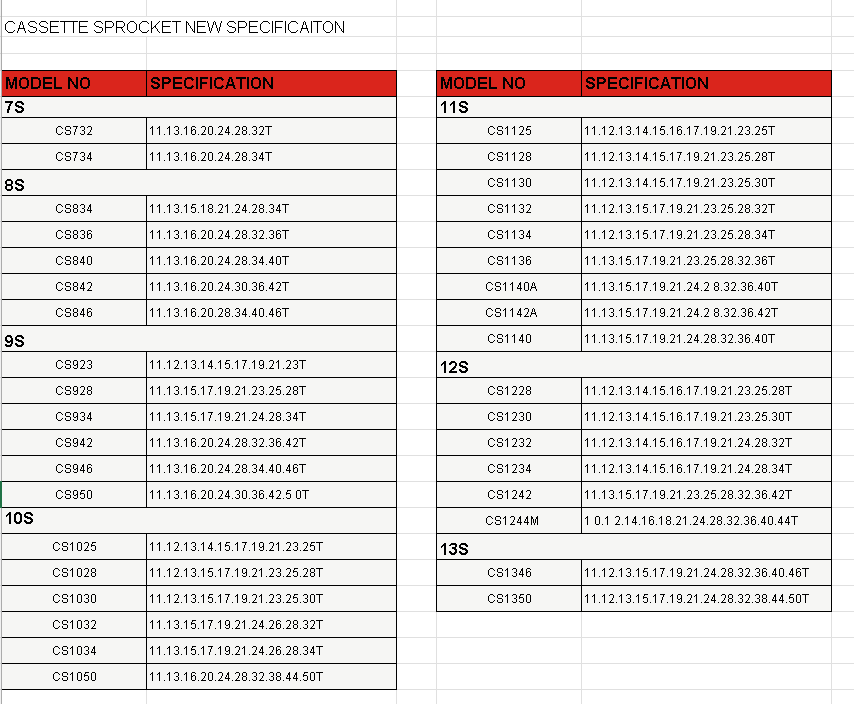

| Model | CS Series — cassette sprocket |
|---|---|
| Mount | Splined freehub, lockring 40 N·m |
| Sprockets | Nickel-plated steel |
| 7S | CS732: 11.13.16.20.24.28.32T · CS734: 11.13.16.20.24.28.34T |
| 8S | CS834: 11.13.15.18.21.24.28.34T · CS836: ...36T · CS840: ...40T · CS842: 11.13.16.20.24.30.36.42T · CS846: 11.13.16.20.28.34.40.46T |
| 9S | CS5923: 11.12.13.14.15.17.19.21.23T · CS5928: ...25.28T · CS5934: 11.13.15.17.19.21.24.29.34T · CS5942: 11.13.16.20.24.28.32.36.42T · CS5946: 11.13.16.20.24.28.34.40.46T · CS5950: 11.13.16.20.24.30.36.42.50T |
| 10S | CS1025: 11.12.13.14.15.17.19.21.23.25T · CS1028: ...28T · CS1030: ...30T · CS1032: 11.13.15.17.19.21.24.26.28.32T · CS1034: ...34T · CS1050: 11.13.16.20.24.28.32.38.44.50T |
| 11S | CS1125: 11.12.13.14.15.16.17.19.21.23.25T · CS1128: ...28T · CS1130: ...30T · CS1132: ...32T · CS1134: ...34T · CS1136: 11.13.15.17.19.21.23.25.28.32.36T · CS1140A: 11.13.15.17.19.21.24.28.32.36.40T · CS1142A: ...42T · CS1140: 11.13.15.17.19.21.24.28.32.36.40T |
| 12S | CS1228: 11.12.13.14.15.16.17.19.21.23.25.28T · CS1230: ...30T · CS1232: ...32T · CS1234: ...34T · CS1242: 11.13.15.17.19.21.23.25.28.32.36.42T · CS1242M: 10.12.14.16.18.21.24.28.32.36.40.44T |
| 13S | CS1346: 11.12.13.15.17.19.21.24.28.32.36.40.46T · CS1350: 11.12.13.15.17.19.21.24.28.32.38.44.50T |
| Packing | Confirm with order |
Specifications are typical values for the standard configuration. Custom materials, ranges and certifications are available on request — talk to an application engineer for a tailored datasheet.
